Description

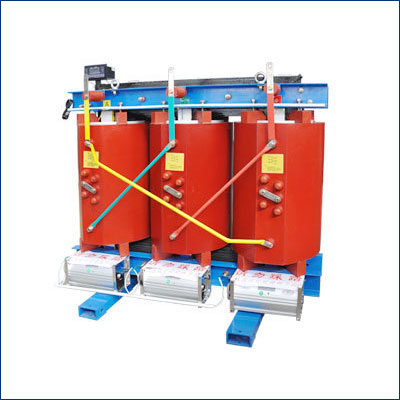

10kVA dry-type transformer is a transformer with a capacity of 10 kVA, which can be widely used in industrial and commercial fields. A dry-type transformer is a common electrical device used to transfer electrical energy from one circuit to another while maintaining voltage stability.
Dry Type Transformer Advantages
High-temperature coil;
Multiple cooling holes;
WISCO silicon steel sheet;
Higher safety and environmental protection;
Compact structure, flexible and convenient to move;
Here is the 10 kva dy type transformer details in our factory for your reference!!
Dry Type Transformer Details
High temperature-resistant enameled wire
The temperature resistance can reach 180C, good insulation, and not easy to age to further improve the life of the machine;
Export wooden box
Good wood packaging, strong impact resistance, strong wood corrosion resistance, no rust, and no environmental pollution;
Terminals
Transformer core-flavor insulation board wiring is both beautiful and safe, and can be customized according to customer needs;
Imported silicon steel sheet
Good heat dissipation coefficient, low iron loss, good magnetic flux performance, anti-corrosion, and improved punching properties;
DMD insulating paper
Excellent electrical performance enables the transformer to withstand a 3500V withstand voltage test to ensure that the product is safer;
Dry Type Transformer Specification
| Rated Capacity(KVA) | No load loss(w) | load
Loss(120℃) |
Short circuit impedance(％) | Noise level(DB) | Gauge（mm） | Host(mm)&(kg) | Shell(mm)&(kg) | ||
| SCB(10) | SCB(10) | Dimensions | Weight | Dimensions | Weight | ||||
| 160 | 540 | 2130 | 4 | 58 | 550 | 1100x650x1028 | 930 | 1500x1150x1500 | 230 |
| 200 | 620 | 2530 | 4 | 58 | 660 | 1100x760x1088 | 1060 | 1500x1150x1500 | 230 |
| 250 | 720 | 2760 | 4 | 58 | 660 | 1130x760x1115 | 1250 | 1500x1150x1500 | 230 |
| 315 | 880 | 3470 | 4 | 60 | 660 | 1180x760x1150 | 1450 | 1500x1150x1500 | 230 |
| 400 | 980 | 3990 | 4 | 60 | 660 | 1220x760x1225 | 1680 | 1600x1250x1600 | 250 |
| 500 | 1160 | 4880 | 4 | 62 | 660 | 1250x920x1300 | 1910 | 1600x1250x1600 | 250 |
| 630 | 1340 | 5880 | 4 | 62 | 660 | 1250x920x1340 | 2410 | 1800x1450x1500 | 280 |
| 630 | 1300 | 5960 | 6 | 62 | 660 | 1340x920x1208 | 2200 | 1800x1450x1800 | 280 |
| 800 | 1520 | 6960 | 6 | 64 | 660 | 1420x920x1285 | 2490 | 1800x1450x1500 | 280 |
| 1000 | 1770 | 8130 | 6 | 64 | 660 | 1460x920x1415 | 2950 | 1800x1450x1800 | 280 |
| 1250 | 2090 | 9690 | 6 | 65 | 820 | 1500x920x1622 | 3550 | 1900x1450x1900 | 320 |
| 1600 | 2450 | 11730 | 6 | 66 | 1070 | 1620x1170x1720 | 4100 | 1950x1500x2000 | 350 |
| 2000 | 3050 | 14450 | 6 | 66 | 1070 | 1680x1170x1755 | 4930 | 2000x1500x2100 | 380 |
| 2500 | 3600 | 17100 | 6 | 71 | 1070 | 1780x1170x1924 | 5850 | 2300x1600x2300 | 420 |
Dry Type Transformer Features
1. Small size, lightweight, less floor space, and low installation cost;
2 Low loss, low noise, obvious energy saving effect, maintenance-free;
3 Safe, fire-proof, non-polluting, and can be directly operated in the load center;
4 Good moisture-proof performance, suitable for operation in high humidity and other harsh environments;
5 Good heat dissipation performance, strong overload capacity, and can increase capacity operation when forced air cooling;
6 Adopt Swiss T+M technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability, and long service life;
7 It can be equipped with a complete temperature monitoring and protection system. The intelligent signal temperature control system is adopted, which can automatically monitor and display the working temperature of the three-phase windings. It can automatically start and stop the fan, and has functions such as alarm and trip;
10kVA dry-type transformer is an efficient, safe, and reliable power equipment. They play an important role in industry and commerce, providing stable and sustainable solutions for power transmission and supply.
